More on Electric Potential
This lecture is based on Serway, Sections 25.1-25.8.

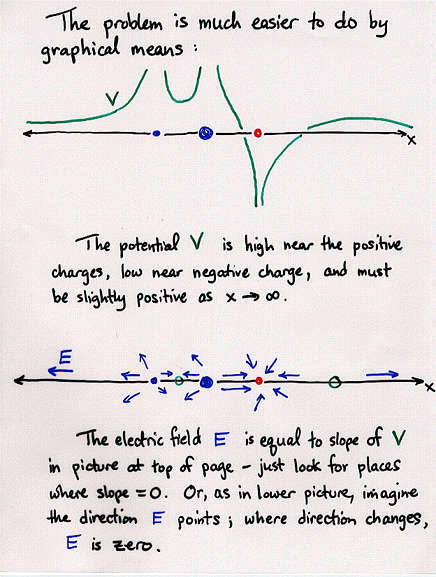

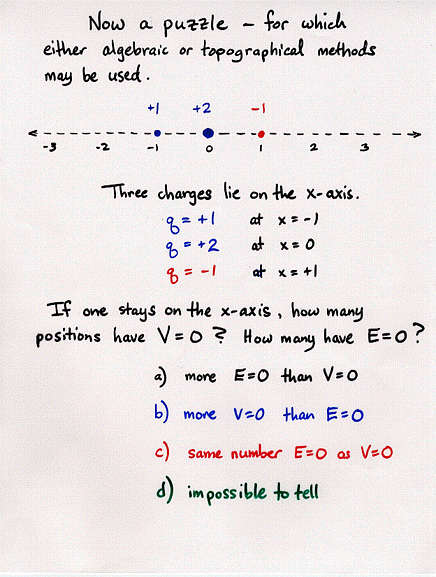

- One can use the electric potential/altitude analogy to solve
some difficult problems qualitatively
- Electric potential is related to kinematics of charged
particles just as gravitational potential is
to massive particles

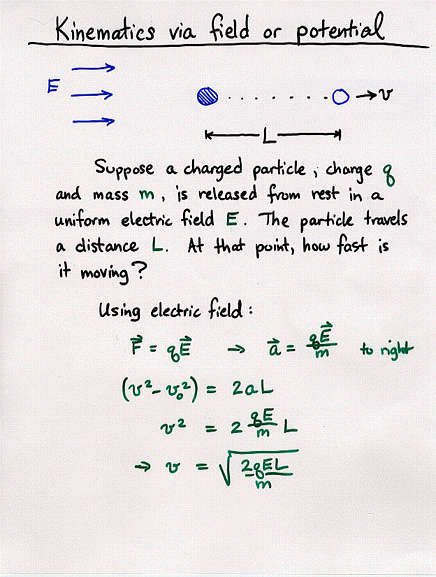

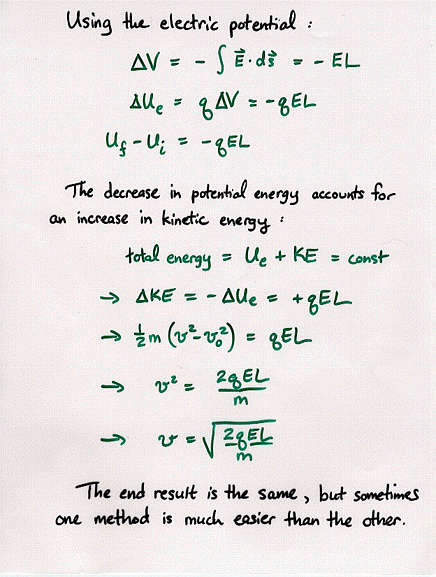

- One can solve kinematic problems either via the electric potential,
or the electric field. Use whichever is more natural for
the problem at hand

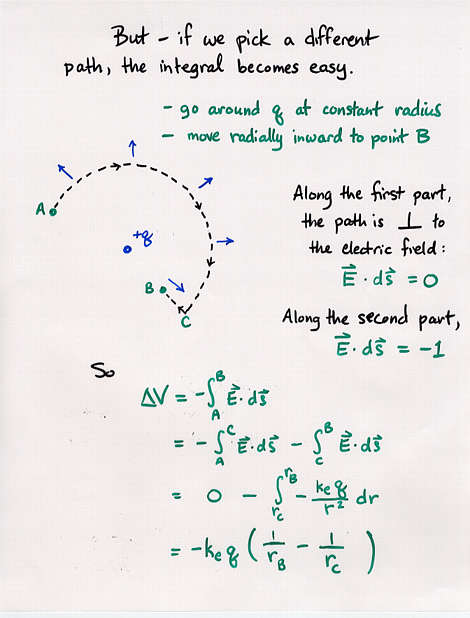

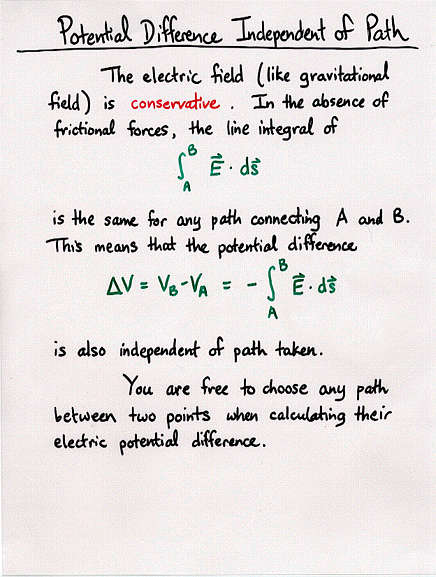

- Electric potential between two points is independent of the
path taken between them (because electric force is
conservative)

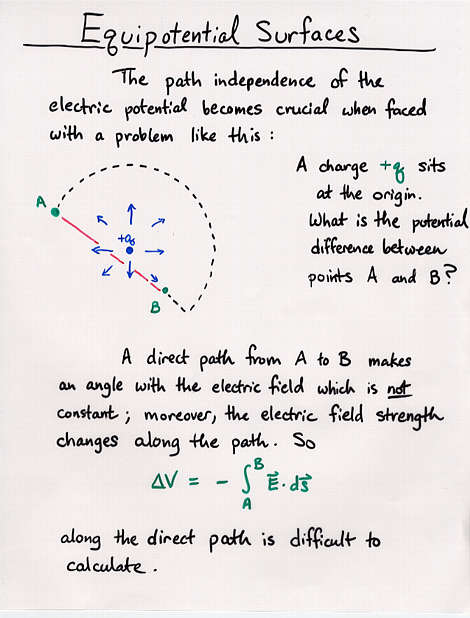

- Electric potential is constant along equipotential surfaces

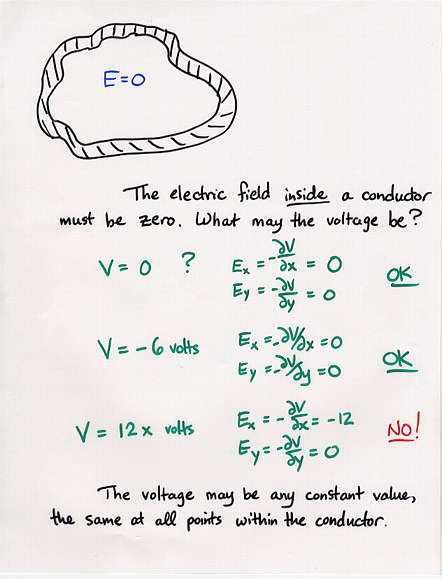

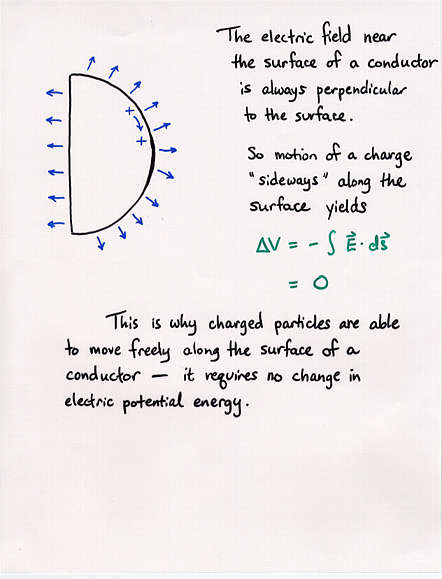

- Electric potential is the same inside a close conducting surface
as it is on the surface

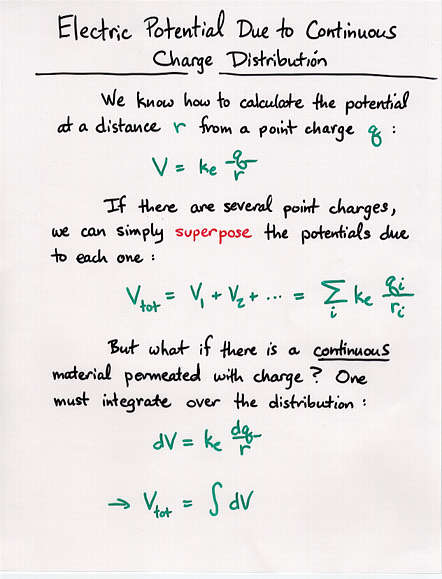

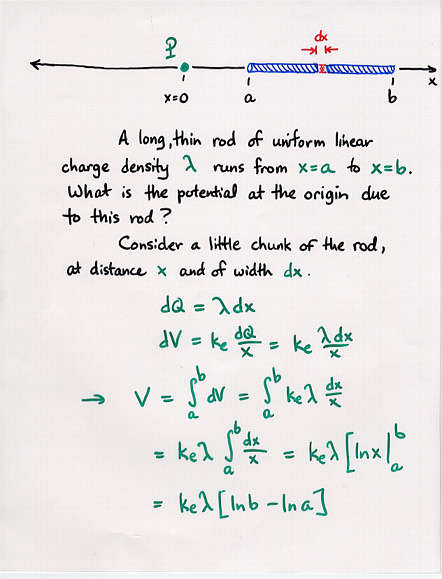

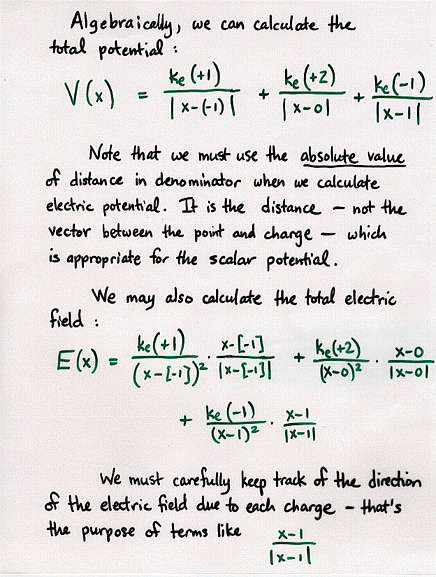

- To calculate the electric potential due to a continuous
distribution of charge, use the familiar method of integrating
over the distribution
Viewgraph 1
Viewgraph 2
Viewgraph 3
Viewgraph 4
Viewgraph 5
Viewgraph 6
Viewgraph 7
Viewgraph 8
Viewgraph 9
Viewgraph 10
Viewgraph 11
Viewgraph 12
Viewgraph 13
Viewgraph 14
Viewgraph 15
Viewgraph 16
Viewgraph 17
Viewgraph 18
